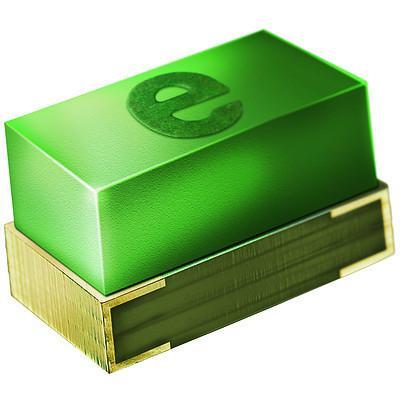

Schurter 3413.0002.22 표면 실장 퓨즈 USFF 1206 퓨즈 FF 50mA

Width: 1.6 mm

Height: 1.6 mm

Length: 3.2 mm

Fuse Type: Fast Blow

Resistance: 8.35 Ohms

Unit Weight: 6 mg

Current Rating: 50 mA

Interrupt Rating: 10 A at 125 VAC, 100 A at 63 VDC

Fuse Size / Group: 1206 (3216 metric)

Voltage Rating AC: 125 VAC

Voltage Rating DC: 63 VDC

Maximum Operating Temperature: + 90 C

Minimum Operating Temperature: - 55 C
