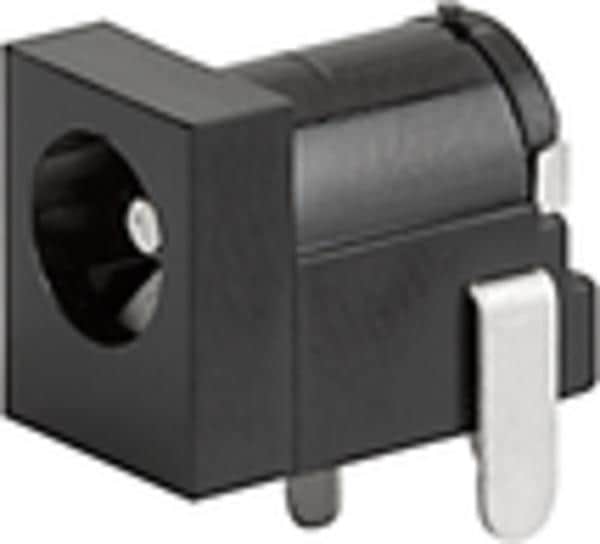

Schurter 4840.2211 소켓 DC 소켓 2.35MM PCB 장착

Color: Black

Unit Weight: 1.650 g

REACH - SVHC: Details

Contact Gender: Pin (Male)

Current Rating: 2 A

Mounting Angle: Right Angle

Mounting Style: Through Hole

Voltage Rating: 12 VDC

Housing Material: Thermoplastic (TP)

Termination Style: Solder

Flammability Rating: UL 94 V-0

Insulation Resistance: 100 MOhms

Inside Contact Diameter: 2.35 mm

Outside Contact Diameter: 6 mm

Maximum Operating Temperature: + 70 C

Minimum Operating Temperature: - 20 C
