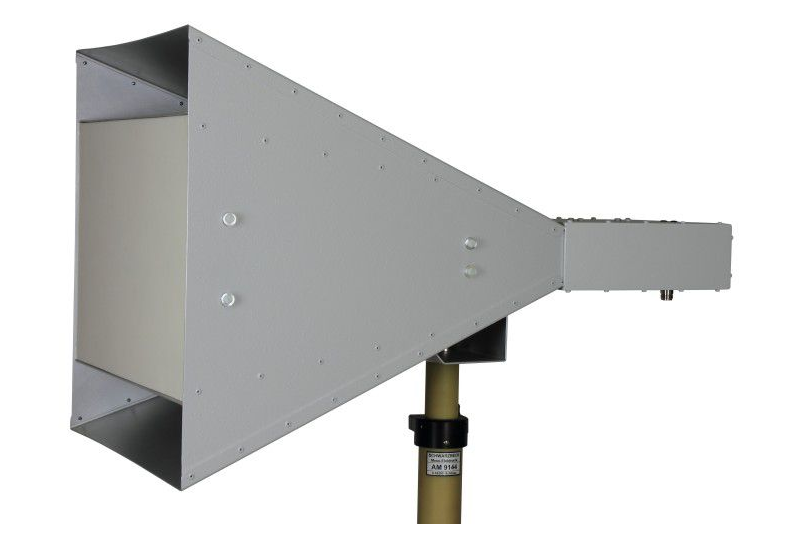

Schwarzbeck BBHA 9120 J Broadband Horn Antennas (800 MHz ... 6.2 GHz)

Frequency Range: 800 MHz ... 6.2 GHz

Isotropic Gain: min 11 dBi (f > 1 GHz)

Nominal Impedance: 50 Ω

Standing Wave Ratio SWR max.: < 2.3 (f > 1 GHz)

Standing Wave Ratio SWR typical: 1.3 (f > 1 GHz)

Polarisation: linear

3 dB Beamwidth typ. (E-Plane): 48° ... 11°

3 dB Beamwidth typ. (H-Plane): 48° ... 12°

Max. Input Power: 1 kW @ 1 GHz, N-Connector female

Max. Input Power:1.7 kW @ 1 GHz , Option: 7-16 connector female

Center Mount: 3/8" + M12

Width x Length x Height: 680 x 435 x 440 mm

Weight: 7.6 kg
