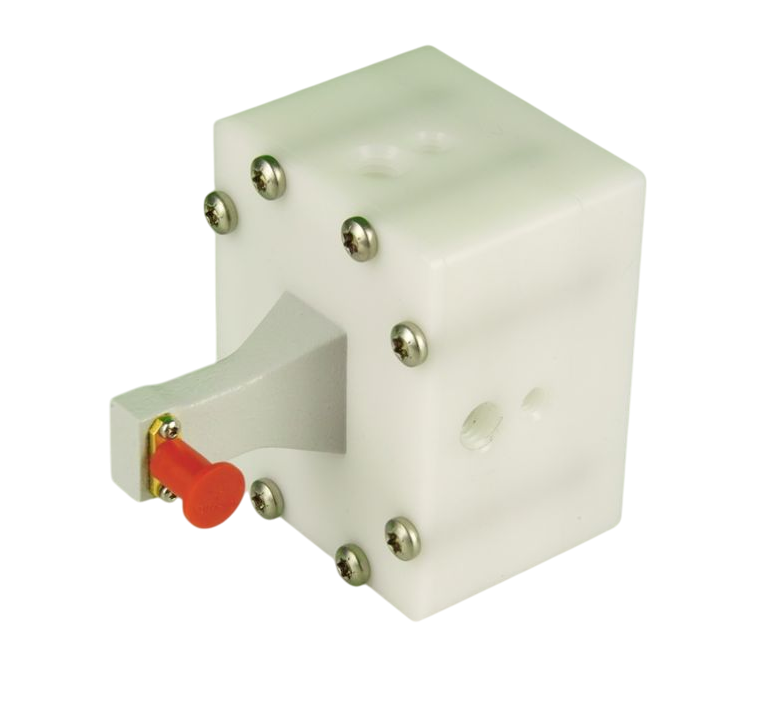

Schwarzbeck BBHA 9170 Broadband Horn Antennas (15 GHz ... 26.5 GHz)

Nominal Frequency Range: 15 GHz ... 26.5 GHz

Usable Frequency Range: 14 GHz ... 40 GHz

Isotropic Gain: 15 ... 20 dBi

Antenna Factor: 38 ... 45 dB/m

Nominal Impedance: 50 Ω

Standing Wave Ratio SWR typical: < 2

Front to Back Ratio: > 30 dB

Cross Polarisation: > 25 dB

3 dB Beamwidth typ. (E-Plane): 13° - 21°

3 dB Beamwidth typ. (H-Plane): 14° - 23°

Max. Input Power: 10 W (cont.) 25 W (peak)

Connector: SMA-compatible Connector female

Mount: 3/8", 1/4"

Width x Length x Thickness: 75 x 86 x 60 mm

Weight: 0.3 kg
