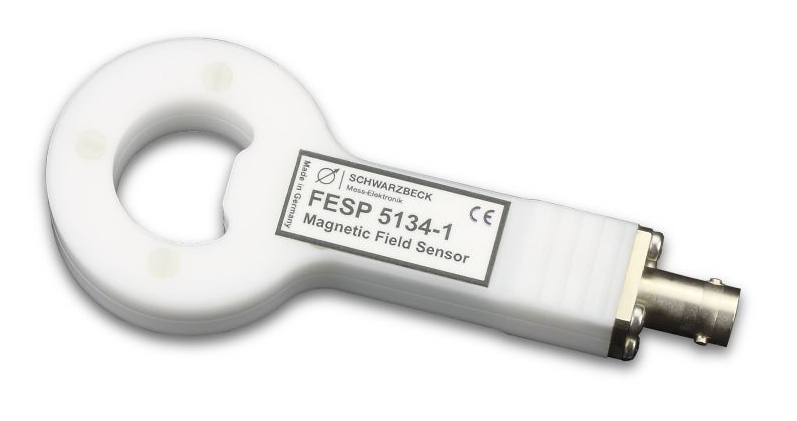

Schwarzbeck FESP 5134-1 Field Monitoring Loop (10 kHz – 400 MHz, 40 mm)

Number of Turns: 1

Coil Diameter: 40 mm

Usable Frequency Range: 10 kHz - 400 MHz

Nominal Frequency Range: 100 kHz - 300 MHz

Inductance: ca. 125 nH

Weight: ca 70 g

Dimensions: 46 x 18 x 95 mm

Connector: BNC
