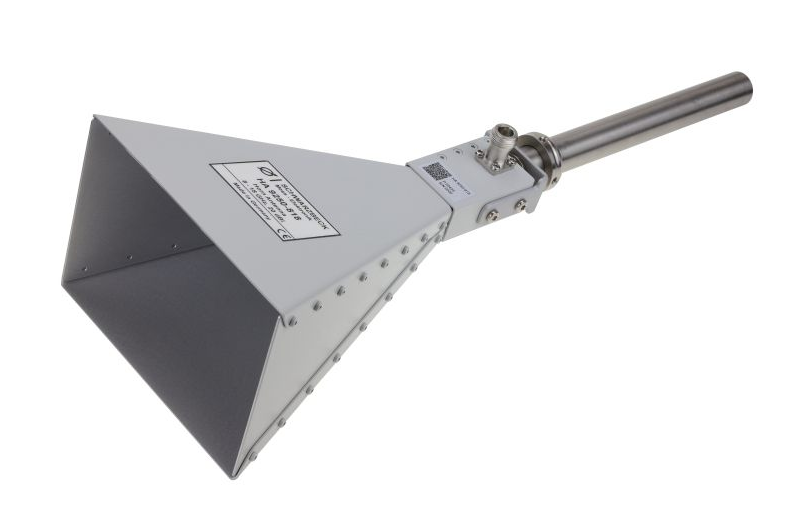

Schwarzbeck HA 9250-818 Standard Gain Horn Antenna (8 – 18 GHz)

Frequency Range: 8 – 18 GHz

Gain: typ. 20 dBi

Antenna Factor: typ. 29 – 37 dB/m

Nominal Impedance: 50 Ω

Continuous Power: 300 W

VSWR: typ. < 2

3 dB Beamwidth E-plane: typ. 15°

3 dB Beamwidth H-plane: typ. 16°

Housing Material: Aluminium

Housing Dimensions: 156 x 115 x 240 mm

Mounting: D = 22 mm, L = 200 mm

Weight: ca. 0.7 kg

Connector: N
