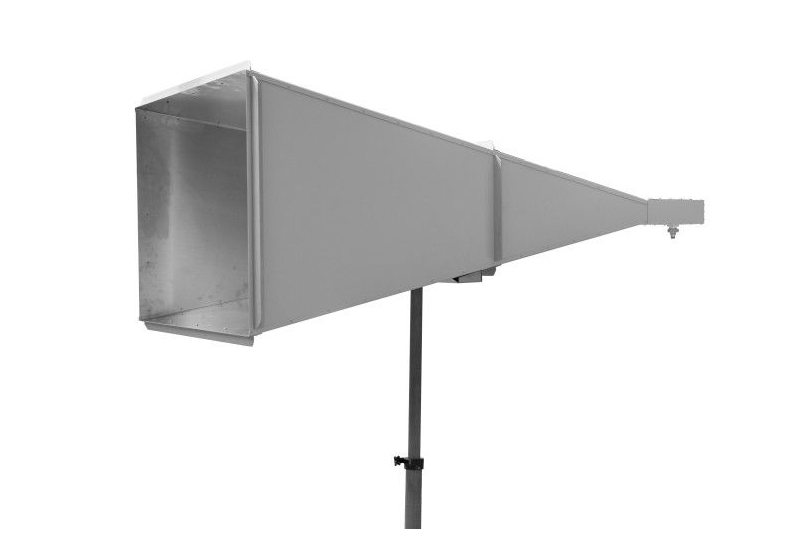

Schwarzbeck HA 9251-12 Standard Horn Antenna (1–2 GHz)

Frequency Range (nominal): 1-2 GHz

Frequency Range (useable): 30.9-2.2 GHz

Gain: ≈ 19-22 dBi

Antenna Factor: 12...15 dB/m

VSWR: typ. < 1.5

Front to Back Ratio: typ. > 27 dB

Half Power Beamwidth (E-Plane): 17° @ 1 GHz/ 13° @ 1.5 GHz/ 11° @ 2 GHz

Half Power Beamwidth (H-Plane): 19° @ 1 GHz/ 14° @ 1.5 GHz/ 16° @ 2 GHz

Connector: 7/16

Max. Input Power: 2 kW (2 GHz)

Max. Peak Input Power: 10 kW

Mounting Threads: 3/8" , M12

Dimensions: 0.72 x 0.96 x 1.84 m

Weight: 18 kg

Material: Aluminium
