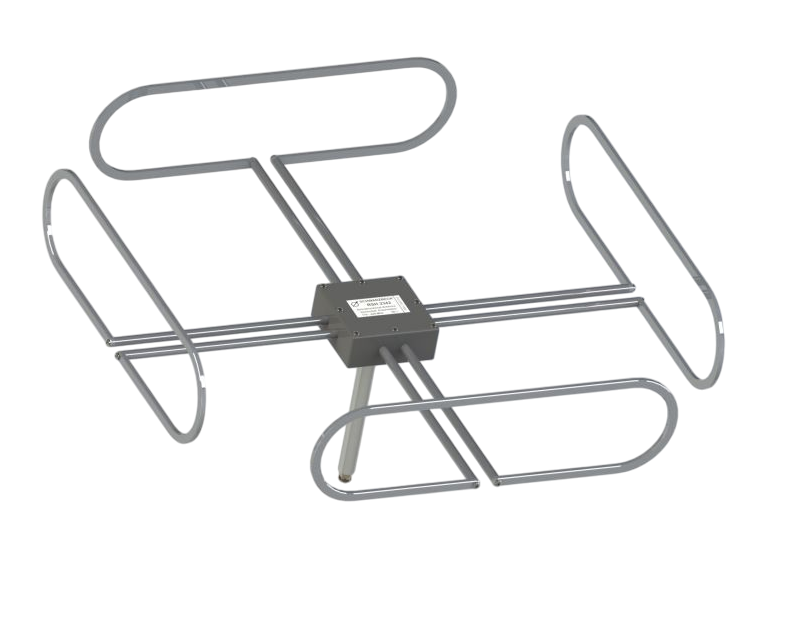

Schwarzbeck RSH 2342 Horizontal Polarised Omnidirectional VHF Antenna (170 – 350 MHz)

Frequency range: 170 – 350 MHz

Impedance: 50 Ω

Connector: N female

Mounting tube: 22 mm

Isotropic gain: typ. –2 ± 3 dBi

Antenna Factor: 16 … 25 dB/m

Deviation from perfect omnidirectional pattern: typ. < ±2 dB

Vertical pattern: Dipole shape

Max. Input Power: 200 W

Weight: 3 kg

Dimensions: 720 × 720 × 390 mm

Recommended spacing between elements and rooftop: > 0.5 m
