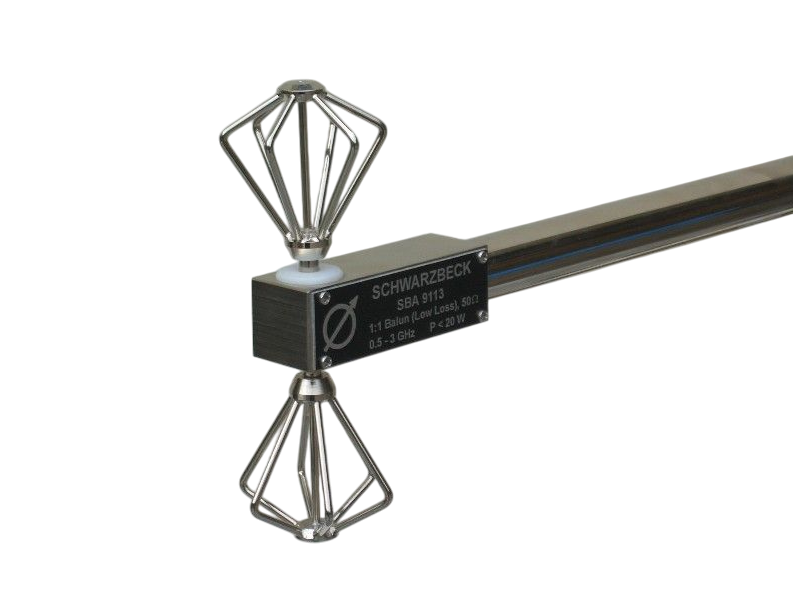

Schwarzbeck SBA 9113 B Microwave Biconical Antenna (80 MHz - 3 GHz)

Frequency range: 80 MHz - 3 GHz

Connector: female 50 W N

Mounting tube: LH=560mm, d=22 mm

Index Ring:LR=190mm

Element length total:LE =140 mm

Element diameter:D = 49 mm

Element fixture: M4

Isotropic gain:typ. -1.5....+1.5 dBi(600 MHz - 3 GHz)

Antenna Factor: 25 ... 41 dB/m

SWR typ.: 1-4

Balun (low loss):1:1

Inversion Symmetry: typ. < 0.2 dB (600 MHz - 3 GHz)

Max. Input Power: 20 W

Half-Power Beamwidth (E-plane): 90° - 50°

Fieldstrength Range:1 mV/m ...1000 V/m

Weight:760 g
