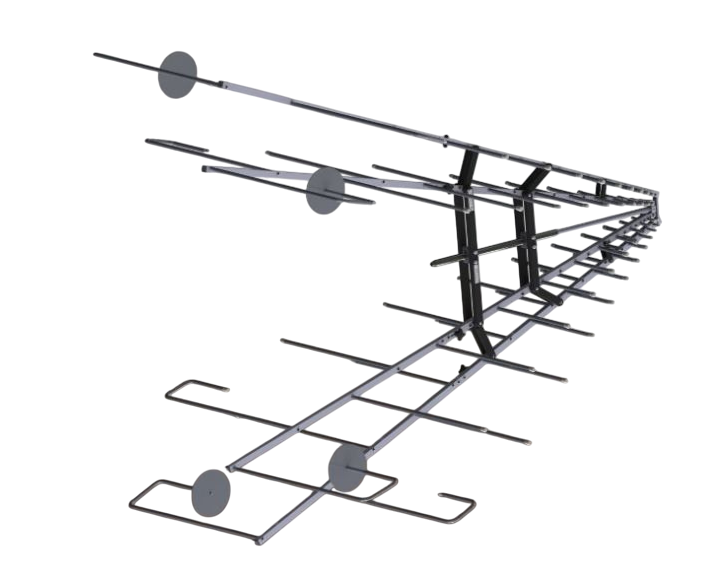

Schwarzbeck STLP 9128 E Stacked Log.-Periodic Antenna (80 - 1700 MHz)

Nominal Frequency Range: 80 - 1700 MHz

Usable Frequency Range: 80 - 2700 MHz

Nominal Impedance: 50 Ω

Standing Wave Ratio (SWR) typical: < 1.5

Mounting: 22 mm Tube

3 dB Beamwidth typ. (E-Plane): 47° - 87°

3 dB Beamwidth typ. (H-Plane): 41° - 107°

Max. Input Power (N-connector): 1 kW (const.)/1.5 kW (intermitt)

Max. Input Power (7/16-connector): 2 kW (const.)/3 kW (intermitt)

Mounting Tube: Ø = 22 mm

Width × Length × Height (while set to vertical polarisation): 1.5 × 1.74 × 1.4 m

Weight: 9.8 kg
