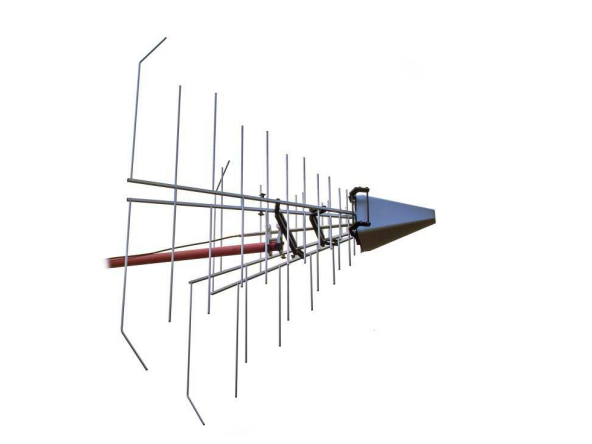

Schwarzbeck STLP 9129 Stacked Log.-Periodic Antenna (70 MHz – 10 GHz)

Frequency Range: 70 MHz – 10 GHz

Polarisation: Linear

Pattern Type: Directional

Material: Aluminium

Connector: Type N female/Type 7/16 female

Isotropic Gain: 8.6 dBi ± 2.3 dB

Nominal Impedance: 50 Ω

VSWR typ.: < 2

Dimensions: 1.69 × 1.64 × 2.02 m

Mounting: 22 mm Tube

Weight: 10.2 kg

Connector: N, 7/16

 Datasheet
