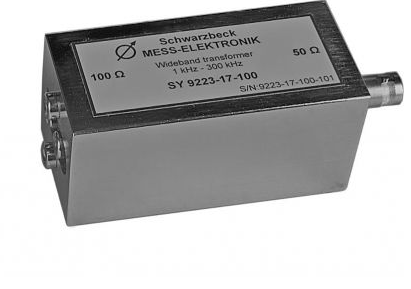

Schwarzbeck SY 9223-17-100 Wideband isolation transformer (1 kHz – 300 kHz)

Nominal Frequency Range: 1 kHz – 300 kHz

Return Loss: minimum 15 dB

Maximum Power Dissipation: 500 mW

Impedance Transformation: 100 Ω : 50 Ω

Dimensions incl. Connectors: L = 105 mm, H = 43 mm, B = 40 mm

Weight: maximum 250 g

Connector 50 Ω Side: 50 Ω BNC jack/female

Connector 100 Ω Side: 4 mm jacks / 4 mm connector
