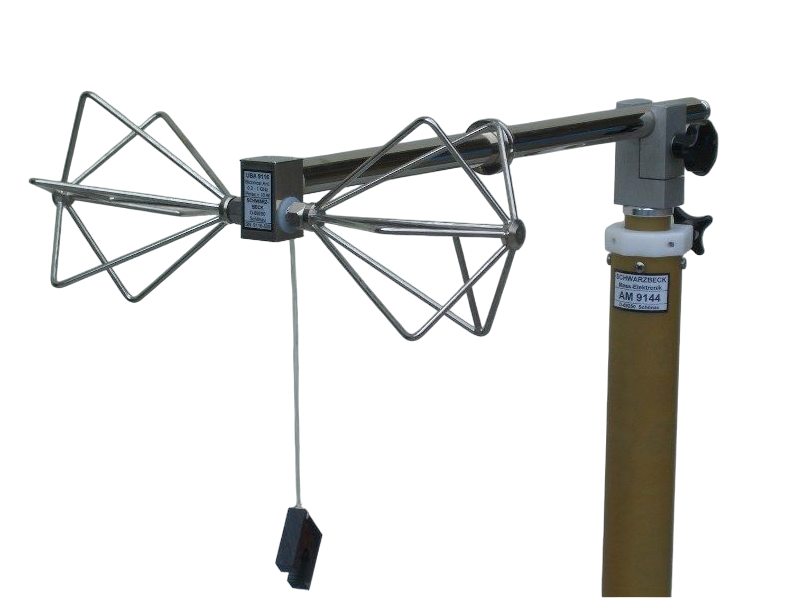

Schwarzbeck UBA 9116 VHF-UHF Biconical Broadband Antenna (160 – 1100 MHz)

Frequency Range (useable):160 - 1100 MHz

Main Frequency Range:300 - 1000 MHz

Isotropic Gain: + 1.3 dBi ... -1.4 dBi

Gain over λ/2 Dipole: - 0.9 dBd ... -3.6 dBd

Return loss f > 250 MHz: typ. 4 dB

Ret. loss f > 250 MHz, 3 dB pad: typ. 10 dB » SWR 2

Antenna Factor: 18 - 30 dB/m

Dimensions: Length holder 520 mm

Length holder with cones: 570 mm

Width: 325 mm

Antenna shaft (Tube): Ø 22 mm

Total weight: 0.83 kg

Power (EMC TX): 5 W

Coaxial Connector: N-Buchse / N - female
