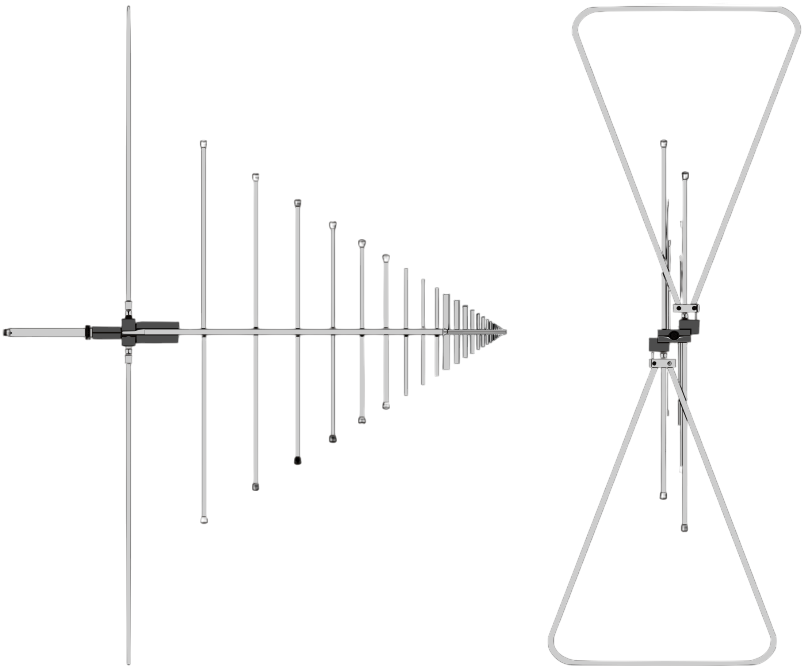

Schwarzbeck VULB 9162 Trilog Broadband Antenna (30 MHz...7 GHz)

Nominal Frequency Range: 30 MHz...7 GHz

Usable Frequency Range: 25 MHz ... 8 GHz

Isotropic Gain (LP-Section): 6.4+/- 1.2 dBi

Antenna Factor: 7 ... 43 dB/m

Nominal Impedance:50 Ω

Standing Wave Ratio SWR typical: <1.5 (f > 150 MHz)

Front to Back Ratio: 20 dB (f > 150 MHz)

Cross Polarisation: >20 dB (30 MHz...1 GHz)

3 dB Beamwidth typ. (E-Plane): 45°-65° (f > 150 MHz)

3 dB Beamwidth typ. (E-Plane): ≈78° (f < 150 MHz)

3 dB Beamwidth typ. (H-Plane): 90°-120° (f > 150 MHz)

Max. Input Power: 200 W (intermitt.)/100 W (cont.)

N-Connector female

Mount: 22 mm Tube, Indexing Ring

Width x Length x Thickness:1500 x 920 (1253) x 620mm

Weight: 3.1 kg
