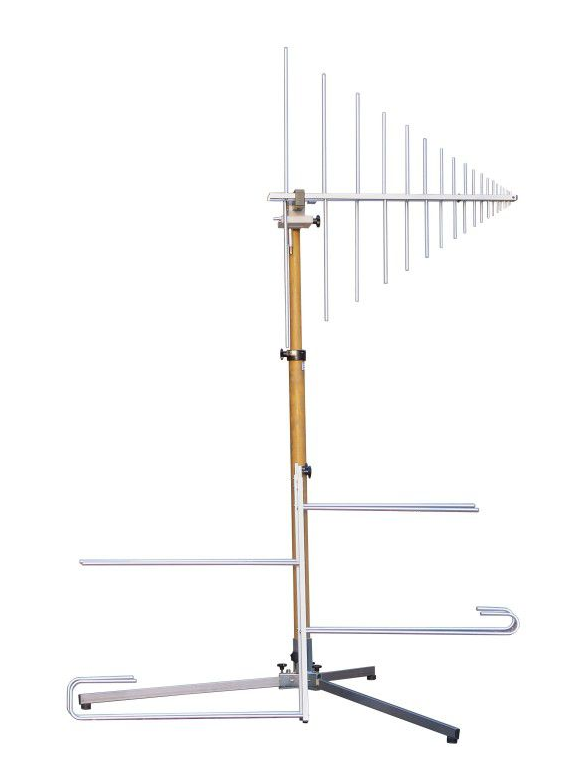

Schwarzbeck VUSLP 9111 F Demountable Log.-Per. Antenna (80 MHz ~ 3 GHz)

Nominal frequency range: 80 MHz ... 3 GHz

Usable frequency range: 75 MHz ... 4 GHz

Isotropic gain: typ. 6.3 dBi ± 1.3 dB

Antenna factor: 4 ... 35 dB/m

Nominal impedance: 50 Ω

Standing wave ratio (SWR) typical: 1.5

Front to back ratio: typ. 20 dB

Cross polarisation rejection: >20 dB (80 MHz ... 3 GHz)

3 dB beamwidth typ. (E-Plane): 45° – 65°

3 dB beamwidth typ. (H-Plane): 90° – 120°

Max. input power: 1000 W (<300 MHz) / 300 W (1 GHz)

Connector type: N-connector female

Center mount: 3/8" & M12

Dimensions (W × L × T): 1.34 × 1.53 × 0.11 m

Weight: 3.0 kg

Recommended accessories: AM 9144 Mast, KG 9201 Adapter, CCA 9111 F
