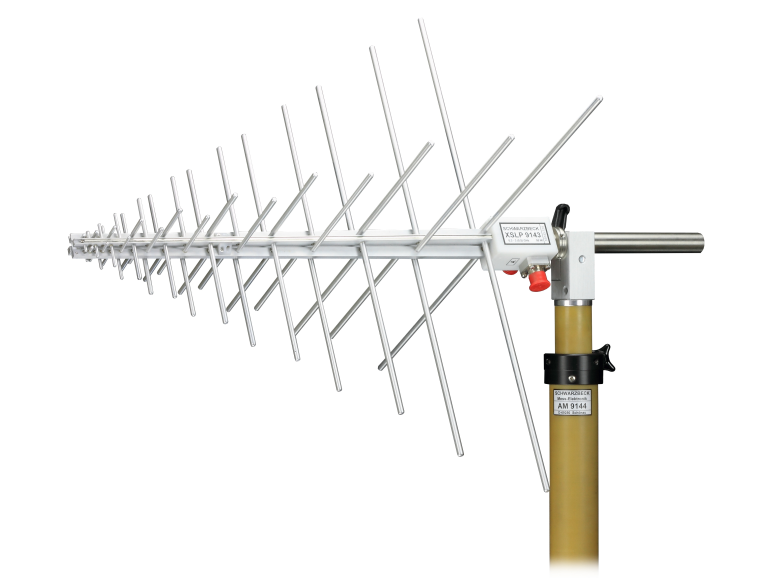

Schwarzbeck XSLP 9143 Dual Polarized UHF-SHF Log.-Per. Antenna (300 MHz ~ 3 GHz)

Nominal Frequency Range: 300 MHz. ... 3 GHz

Usable Frequency Range: 250 MHz ... 5.5 GHz

Isotropic Gain: typ. 4 ... 7 dBi

Antenna Factor: 15 ... 35 ( 42) dB/m

Nominal Impedance: 50 Ω

Standing Wave Ratio (SWR) typical: 1.5 - 3

Front to Back Ratio: > 15 - 25 dB

Cross Polarisation Rejection: typ. 15 dB

3 dB Beamwidth typ. (E-Plane): 50° - 80°

3 dB Beamwidth typ. (H-Plane): 90° - 170°

Max. Input Power: 100 W (intermitt.), 50 W (cont.)

Connector: N-Connectors female

Mount: 22 mm Tube, Indexing Ring

Width × Length × Thickness: 540 x 695 x 540 mm

Weight: 1.2 kg
