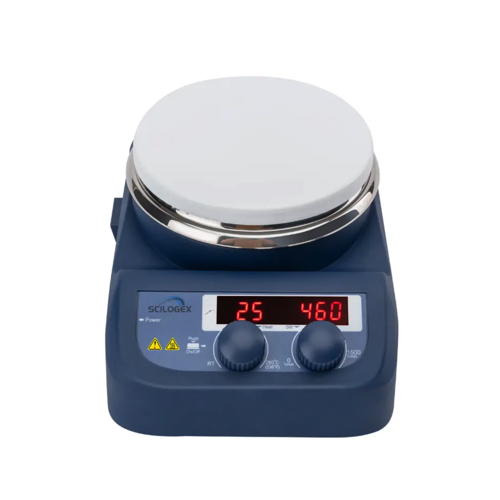

SCILOGEX SCI280-Pro LED Digital Magnetic Hotplate Stirrer (Ø135mm; 3L; 200-1500rpm)

LED Digital Magnetic Hotplate Stirrer with Ceramic Coated Steel Plate and 50mm x 8mm magnetic stir bar (110V, US Plug)

Work plate Dimension: Ø135mm(5 inch)

Work plate material: stainless steel cover with ceramic

Motor type: Brushless DC motor

Motor rating input: 5W

Motor rating output: 3W

Power: 515W

Heating output: 500W

Voltage: 100-120/200-240V 50/60Hz

Stirring positions: 1

Max. stirring quantity: 3L

Max. magnetic bar [length]: 50mm

Speed range: 200-1500rpm

Speed display: LED

Temperature display: LED

Speed display resolution: ±1rpm

Heating temperature range: Room temp.-280, increment 1°C

Control accuracy of work plate: ±1°C(<100°C) ±1%(>100°C)

Overheating protection: 320°C

Temperature display accuracy: ±1°C

External temperature sensor: PT1000 (accuracy ±0.5°C)

"Hot" warning: 50°C

Protection class: IP21

Dimension [WxDxH]: 150×260×80mm

Weight: 1.8kg

Permissible ambient temperature and humidity: 5-40°C, 80%RH

Datasheet
