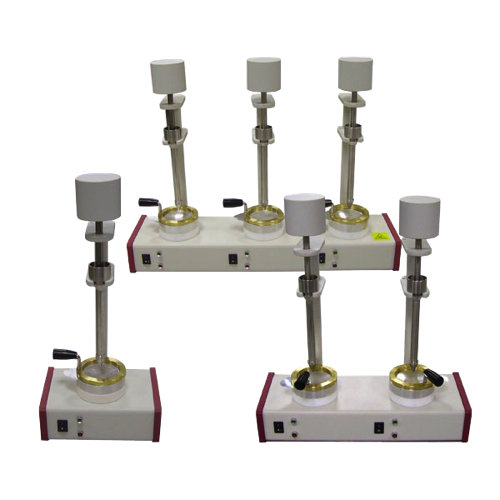

SDL Atlas F217A Rapid Oil Extraction Apparatus (12 mm (OD), 10 mm (ID), single)

Application: To determine the oil or finish content of wool or synthetic samples by solvent percolation and evaporation

Suitable for: Fiber, yarn or fabric

Edana method: ERT 155

Extraction tube: 12 mm (OD), 10 mm (ID)

New method: Determination of acetone extractable finish on nonwovens

Weight: 4.4 kg/9.7 lbs

Dimensions: 170 mm (w) x 170 mm (d) x 380 mm (h) / 7 in (w) x 7 in (d) x 15 in (h)

*Images are for illustrative purposes only.
