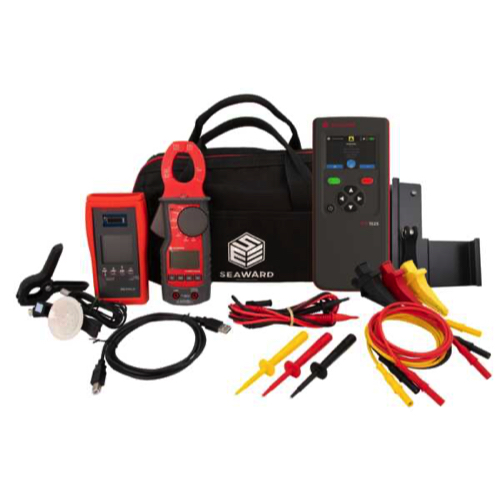

Seaward PV:1525 Kit PV Test Instrument (1500 V DC; 25 A)

Measurement of open-circuit voltage Uoc: up to 1500 V DC

Measurement of short-circuit current Isc: up to 25 A

Insulation resistance voltage: up to 1500 V DC

Measurement of low-resistance continuity: 200 mA

Weight: Approx. 1 kg / 2.2 lb

Dimensions: 265 mm × 115 mm × 78 mm

Display type: 3.5“ color display with backlight

Display resolution: 480 × 320 pixels

Display FOV:

70° left to right

60° top to bottom

Power source: 11.55 V 2930 mAH lithium ion batteryn (rechargeable)

Auto power down: User-configurable

Onboard memory: 1000 slots

Protective system: Housing: IP40 as per IEC 60529 (Protection against ingress of solid foreign objects: = 1.0 mm / 0.039” Ø; protection against ingress of water: not protected)

Protection category: II

Data Interfaces: Bluetooth® LE; Long-Range RF
