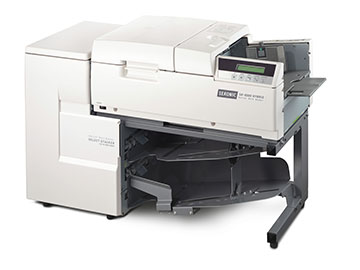

SEKONIC SR-8000 HYBRID Desktop optical mark reader

Reading speed:

Only mark: max 8000 sheets/hour

mark + image: max 8000 sheets/hour

Mark recognition:

Type of sensor: photo-reflector

reading side: sigle side/double side (OP)

mark discrimination: 16 level

light source: IR/AR (OP)

Mark Implement: IR: Pencil/AR: Pen and pencil (OP)

Image recognition:

Type of sensor: CIS

reading side: double side

Resolution: 100, 150, 200, 300, 600 dpi

Mode: Color, Greyscale

Output format: BMP, JPEG

Capacity:

Hopper/Paper receiver: 500 sheets

Select stacker (OP):

main tray: 500 sheets

select tray:150 sheets

Printer: option: Inkjet

Barcode: Option: 1D, QR Code

Paper:

Width: 63.5~228.6mm (image~210mm)

length: 110~355.6mm

quality: OCR, woodfree

Thickness: 84~157gsm

Interface: Connection with PC: USB 3.0

Physical dimension (WxHxD):

main body: 947x227x365mm

select stacker (OP): 800x490x365mm

Weight:

main body: 19.7kg

select stacker (OP): 19.3kg

power: voltage/relatives: 100-240V AC/50-60Hz

Operating Conditions:

temperature: 5-35C

Humidity: 30-80%
