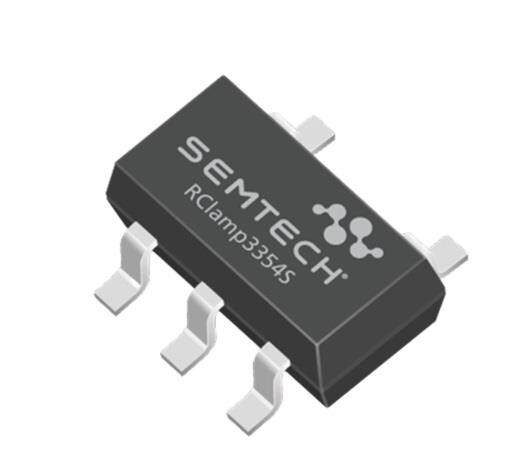

Semtech RCLAMP3354S.TCT ESD 서프레서 3.3V 4 라인 저용량

Polarity: Unidirectional

Unit Weight: 219.503 mg

Current Rating: 500 nA

Working Voltage: 3.3 V

Clamping Voltage: 16 V

Breakdown Voltage: 2.8 V

Termination Style: SMD/SMT

Number of Channels: 4 Channel

Cd - Diode Capacitance: 5 pF

Ipp - Peak Pulse Current: 25 A

Operating Supply Voltage: 3.3 V

Vesd - Voltage ESD Air Gap: 30 kV

Vesd - Voltage ESD Contact: 30 kV

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 55 C

Pppm - Peak Pulse Power Dissipation: 400 W
