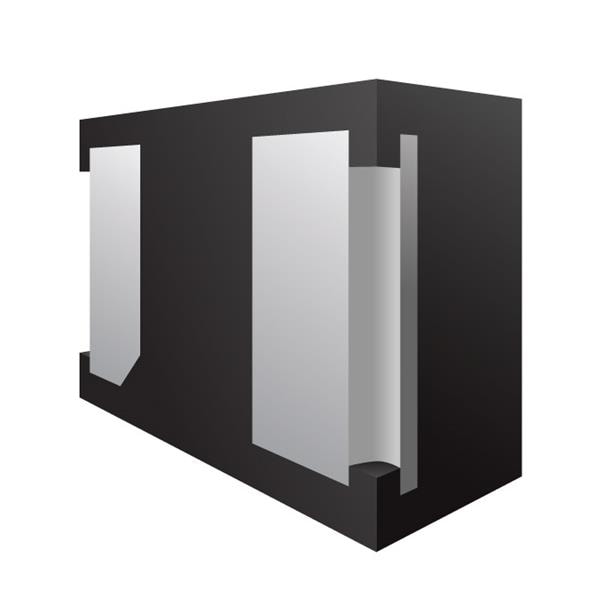

Semtech TDS0521PW.C TVS 다이오드 과도 전압 차단기 1라인, 5V SurgeSwitch EOS 보호

Polarity: Unidirectional

Working Voltage: 5 V

Clamping Voltage: 9.8 V

Breakdown Voltage: 6.9 V

Termination Style: SMD/SMT

Number of Channels: 1 Channel

Vf - Forward Voltage: 600 mV

Cd - Diode Capacitance: 159 pF

Ipp - Peak Pulse Current: 40 A

Vesd - Voltage ESD Air Gap: 30 kV

Vesd - Voltage ESD Contact: 30 kV

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 40 C

Pppm - Peak Pulse Power Dissipation: 412 W
