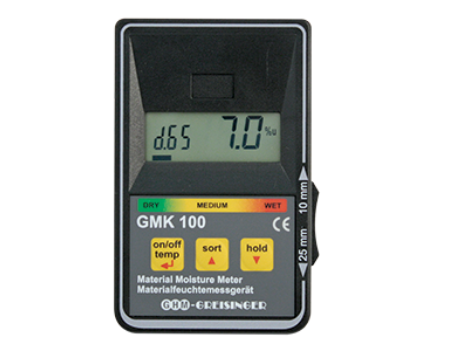

Senseca GMK 100 Material humidity device (-5..+50 °C)

Display: 2 displays: Characteristic curve and measured value, material moisture in % or water content in %, backlight

Moisture evaluation Visually: Moisture evaluation in 6 levels from WET (=wet) to DRY (=dry)

Acoustically: Beeper

Measuring depths: 10 mm und 25 mm

Characteristic curves: 18 material curves for wood (with extensive wood species classification table) and common building materials; additional reference curve (rEF) for highresolution relative measurements.

Working temperature: -5..+50 °C (Material not frozen)

Storage temperature: -25..+70 °C

Power supply: 9 V-Battery

Battery life: max. 2000 h without backlight

Power lighting: Approx. 2,5 mA (Auto-Off)

Housing: made of impact-resistant ABS, membrane keypad, transparent pane

Measurements: Approx. 106 x 67 x 30 m (H x W x D)

Weight: Approx. 145 g (ready for use)

Scope of delivery

Device

Battery

Test protocol

Operating manual

Accessories

PW25

Art.-Nr, 601368

Test cube

Datasheet

Manual
