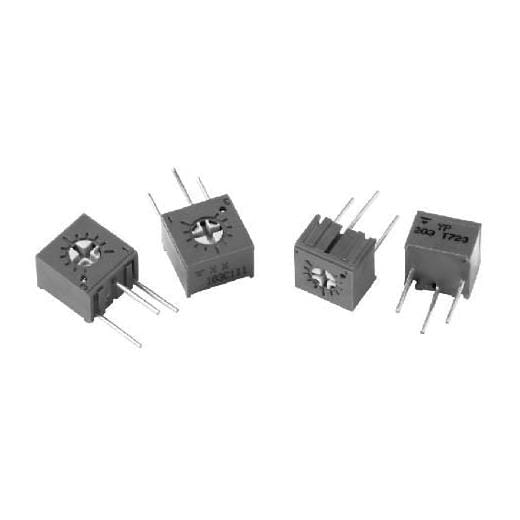

Vishay Sfernice T73YE105KT20 트리머 저항기 - 단회전 1/4"SQ V/ADJ 1M

Taper: Linear

Width: 0.26 in

Height: 0.185 in

Length: 0.275 in

Tolerance: 10 %

Adjustment: Top Cross

Resistance: 1 MOhms

Orientation: Vertical Adjustment

Unit Weight: 600 mg

Element Type: Cermet

Power Rating: 500 mW (1/2 W)

Mounting Style: PCB Mount

Voltage Rating: 250 V

Termination Style: PC Pin

Temperature Coefficient: 70 PPM / C

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 55 C
