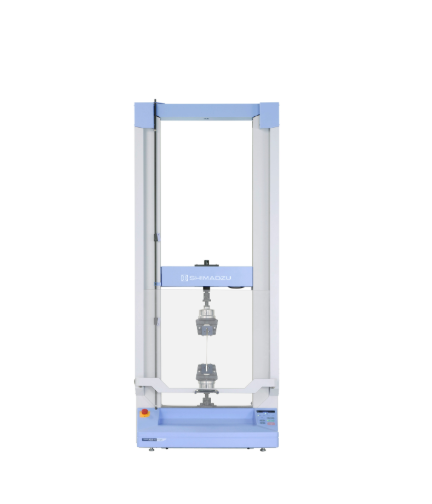

Shimadzu AGS-10kNX Universal Testing Machine (10 kN)

Max. Loading Capacity: 10 kN

Lineup of Models Differing by Load Cell Capacity: 1 N / 2 N / 5 N / 10 N / 20 N / 50 N 100 N / 500 N / 1 kN / 5 kN / 10 kN

Force Measurement

Accuracy

High-Precision Type (1/500, ±0.5%)

Within ±0.5% indicated test force (at 1/500 to 1/1 load cell rating)

Conforms to EN 10002-2 Grade 0.5, ISO 7500-1 Class 0.5, BS 1610 Class 0.5, ASTM E4, and JIS B7721 Class 0.5. *1

Standard-Precision Type (1/500, ±1%)

Within ±1% indicated test force (at 1/500 to 1/1 load cell rating)

Conforms to EN 10002-2 Grade 1, ISO 7500-1 Class 1, BS 1610 Class 1, ASTM E4, and JIS B7721 Class 1. *1

Calibration: Automatic test force calibration: select tensile, compression, or tensile and compression

Crosshead

Speed Range:0.001 to 1000 mm/min (stepless)

Max. Return Speed: 1500 mm/min

Crosshead Speed Accuracy *2: ±0.1%

Crosshead Speed and Permitted Test Force: To load cell capacity across entire speed range

Crosshead – Table Distance (Tensile stroke) *3: 1200 mm (760 mm, MWG)

Effective Test Width: 425 mm

Crosshead Position Detection

Measurement Method: Optical encoder

Display Method: Digital display (display resolution: 0.001 mm)

Positional Accuracy: ±0.1% indicated value or ±0.01 mm, whichever is larger

Data Capture Rate: 1000 Hz max. *4

Test Method Files: 40 files (PC link: 20 files, standalone controller: 20 files)
