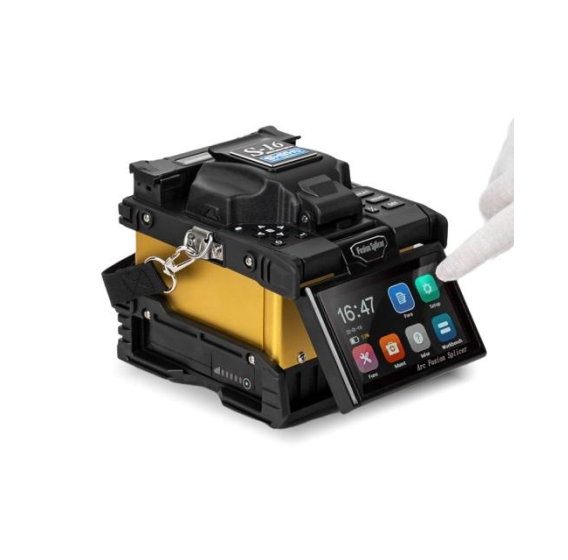

Shinho S-16 Handheld Outdoor Robust Fiber Fusion (Splicing Time: 6~12 8s)

Applicable Fiber : G651/G652/G653/G655/G657 etc.

Cladding Diameter : 80~150μm

Coating Diameter : 160~3000μm

Cleaved Length : 10~16mm ( coating diameter<250μm), 16mm (coating diameter:250~1000μm)

Typical Splice Loss : G651: 0.01dB; G652: 0.02dB; G653: 0.04dB; G655: 0.04dB; G657: 0.02dB

Return Loss : ＞60dB

Splicing Program : 40 modes

Operation Mode : Manual/ Auto

Auto-Heating : Available

Splice Time : 6~12 seconds

Heating Time : 18~26 seconds for 40mm and 60mm shrinkable sleeves

Fiber Magnification : 320X(X or Y view), 160X(X and Y view)

Viewing Display : Dual high sensitivity camera, 4.3”HD color LCD touch screen

Data Storage : 8000 groups fusion records

Loss Evaluation : Available

Tension Test : 1.8~2.2N

Interface : GUI menu interface, easy for operation

Battery Capacity : Detachable 5200mAh Li-battery , typical 250 cycles splicing and heating

Power Supply : Adapter, input: AC100~240V(50/60Hz), output: DC11~13.5V

Electrode Life : More than 4000 ARC discharges, easy to replace

Terminal : USB 2.0 port, for software upgrading, records exporting

Operating Condition : Altitude: 0~5000m; Humidity: 0~95%; Temperature: -10°C~+50°C; Max wind: 15m/s

Dimension/Weight : 165mm(L)×135mm(W)×140mm(H)(including rubber bumper)/2.05kg(with battery)
