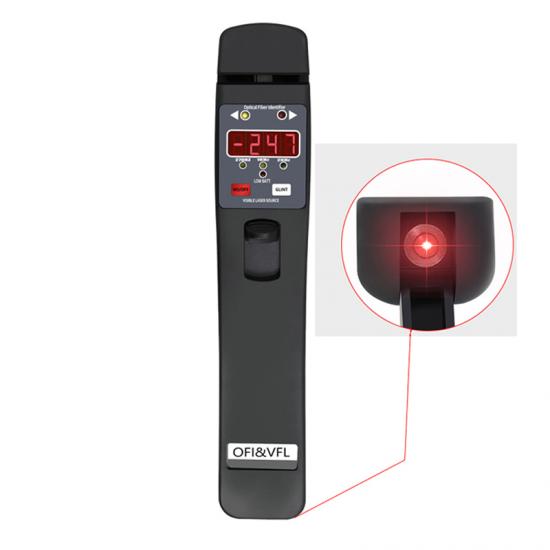

Shinho X-401L Optical Fiber Identifier With VFL (800nm-1700nm)

Wave respond: 800nm-1700nm

Pass through insertion loss: 1. 1.0dB

1.  250umOptical fiber: 2. 1.0dB

2.  900umOptical fiber: 3. 2.0dB

3.  3mmOptical fiber:

Application of optical fiber: 250um/900um/2.5um/3mm Optical fiber

Identified Signal Type: 270HZ/1KHZ/2KHZ

Identification of modulated signals: Yes

Power Measurement: Yes

Display: LED segment

Tone: Yes

Low power monitoring: Yes

Detector type: 1mm InGaAs

Minimum detection power:

Test conditions:: 1550

   250umOptical fiber: -35dBm

   900umOptical fiber: -35dBm

   3mmOptical fiber: -30dBm

Test conditions:: 1310

250umOptical fiber: -30dBm

900umOptical fiber: -30dBm

3mmOptical fiber: -25dBm

Specifications of VFL (Optional):

Wavelength：     : 650nm±10nm

Output Power：  : 10 mW

Fiber Port：  : FC/PC

Power supply：      : 2*AA  1.5V Alkaline Battery

Operation Temperature： : -10℃  to  +50℃

Storage Temperature：  : -20℃  to  +70℃

Outline size: 230*43*36mm

weight:  200g
