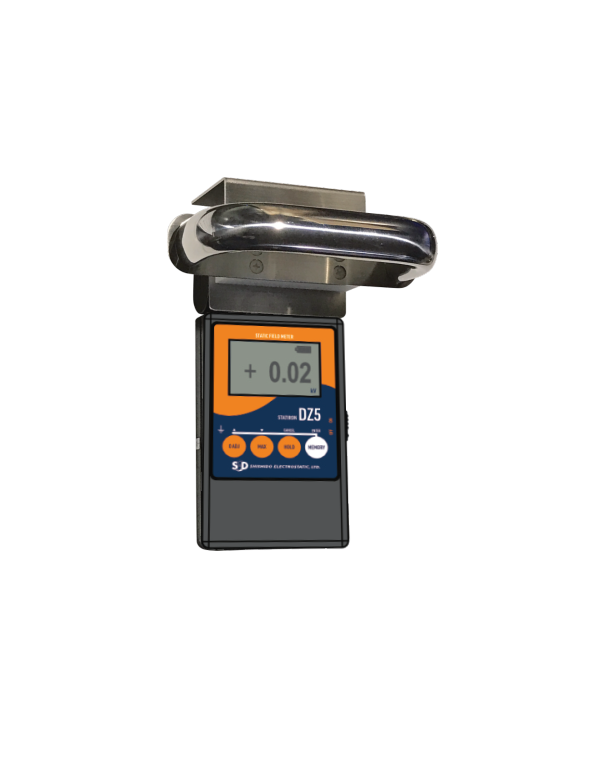

Shishido DZ5 Static Field Meter (0.00 ~ ±19.99 kV, ODZ5-HPLT)

Signal Detection Method: Vibrating chopper method *1

Display Data Update Rate: 0.4 seconds

Measurement Potential Range: 0.00 to ±19.99 kV (resolution 0.01 kV)

Measurement Accuracy: ±10% ±2 digits

Measurement Distance: 30 mm (between measured object and sensor)

Measurement Distance Adjustment: Red LED optical focus system (focus point at 30 mm)

Head Rotation Angle: 180° (stops every 45°)

Display: LED display with backlight

Polarity Display: Positive (+) / Negative (–) indication

Mode Switching: Via MODE button

Battery Check: Battery level indicator on display

Power Supply: 2 × AA batteries

Operating Environment:

Ambient temperature: 5–40°C

Ambient humidity: 20–70% RH (no condensation)

Dimensions: 68 × 23 × 148 mm (W × D × H)

Weight: 200 g (including batteries)

Accessories: Ground wire, instruction manual

Includes: Human body charge plate (ODZ5-HPLT)

*1: The vibrating chopper method is highly sensitive to shocks such as dropping. Please avoid strong impacts during use.
