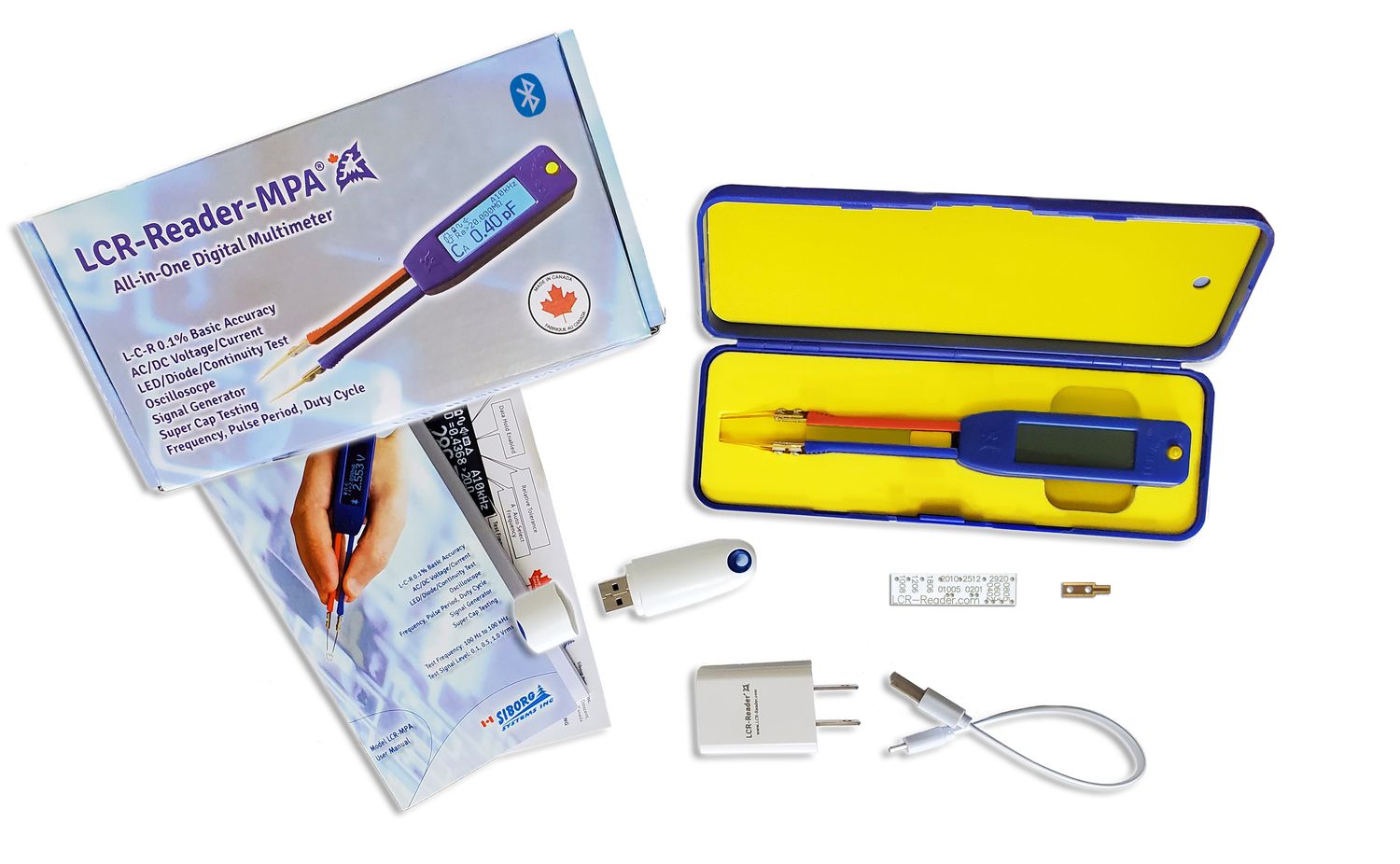

SIBORG 0.1%, 100Khz, Bluetooth Black 디지털 측정기 (0.1%, 100Khz, Bluetooth Grey)

Measuring range

Resistance: 0.1 Ohm to 20 MOhm

Capacitance: 0.1 pF to 1F

Inductance: 10 nH to 100 H

Frequency

Frequency measurement range: 100 Hz – 100 kHz

Signal strength: 1.0±0.05 Vrms, 0.5±0.02 Vrms, 0.1±0.01 Vrms, 0.1±0.01 V/td>

Source impedance: 62.5 /1k /16k +/- 1%

Accuracy

Resistance: 0.1%

Capacitance: 0.1%

Inductance: 0.1%

Automatic measurement mode: L, C, R, ESR

Manual measurement mode: L, C, R, ESR

Tolerance Variation: 1, 5, 10, 20%

Charging type: micro USB

Display: OLED

Weight: 1.35 oz.

Navigation: joystick

Manual
