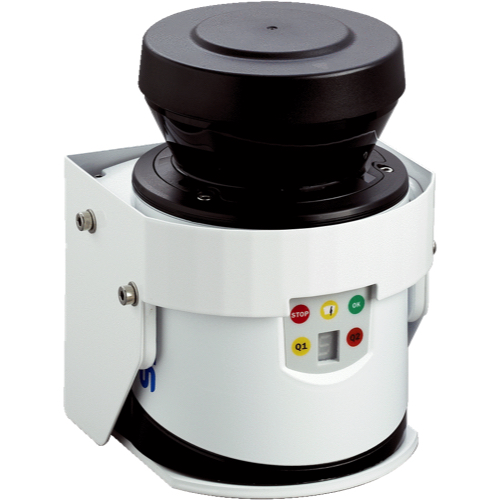

SICK LMC131-11101 VdS 2D 라이다 센서 (50Hz, 0.25° / 0.5°, 0.5 m ~ 20 m)

Application: Security, Outdoor

Light source: Infrared (905 nm)

Laser class: 1 (IEC 60825-1:2014, EN 60825-1:2014)

Aperture angle: Horizontal 270°

Scanning frequency: 50 Hz

Angular resolution: 0.25° / 0.5°

Working range: 0.5 m ... 20 m

Scanning range: At 10% remission 18 m

Connection type: 1 x system plug with screw terminal block

Supply voltage: 9 V DC ... 30 V DC

Power consumption: 20 W, typ. 8 W, heating typ. 35 W

Housing color: Gray (RAL 7032)

Protection class: II (VDE 0106, EN50178)

Enclosure rating: IP67 (EN 60529, Section 14.2.5)

Weight: 1.1 kg, without connecting cables

Dimensions (L x W x H): 105 mm x 102 mm x 152 mm

Heating: Yes

Response time: ≥ 20 ms

Interface: Ethernet ✔, TCP/IP
