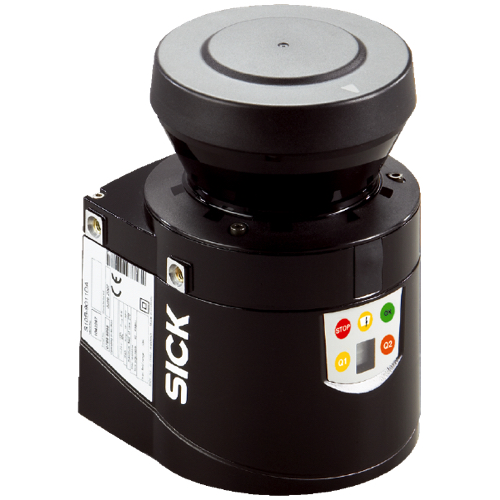

SICK LMS142-15100 2D 라이다 센서 (25 Hz / 50 Hz, 0.25° / 0.5°,0.5 m ~ 40 m)

Application: Security, Outdoor

Light source: Infrared (905 nm)

Laser class: 1 (IEC 60825-1:2014, EN 60825-1:2014)

Aperture angle: Horizontal 270°

Scanning frequency: 25 Hz / 50 Hz

Angular resolution: 0.25° / 0.5°

Working range: 0.5 m ... 40 m

Scanning range: At 10% remission 30 m / At 90% remission 40 m

Connection type: 1 x M12 round connector

Supply voltage: 9 V DC ... 30 V DC

Power consumption: Typ. 8 W, heating typ. 35 W

Housing color: Black (RAL 9005)

Protection class: III (EN 50178 (1997;10))

Enclosure rating: IP67 (EN 60529, Section 14.2.7)

Weight: 1.1 kg

Dimensions (L x W x H): 105 mm x 102 mm x 162 mm

Heating: Yes
