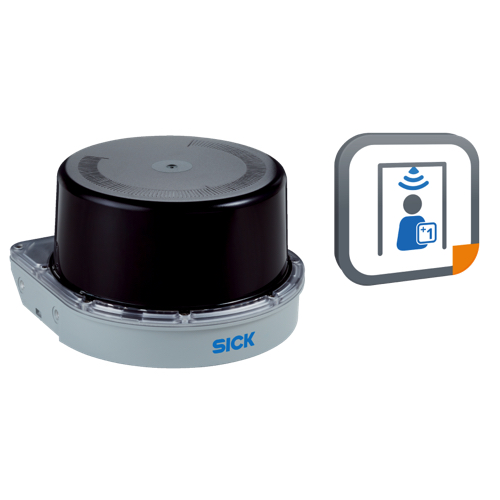

SICK MRS1104A-111011S01 3D 라이다 센서 (50Hz, 0.25°, 10 m)

Measurement principle: HDDM+

Application: Outdoor

Light source: Infrared (850 nm)

Laser class: 1 (IEC 60825-1:2014, EN 60825-1:2014)

Aperture angle: Horizontal 275° / Vertical 7.5° (Over 4 scan layers)

Scanning frequency: 50 Hz, 4 x 12.5 Hz

Angular resolution: 0.25°

Heating: Self-heating

Working range: 10 m (Width of the counting range)

Scanning range: At 10% remission 16 m / At 90% remission 30 m

Spot size: 10.4 mrad x 8.7 mrad

Amount of evaluated echoes: 3

Connection type: M12 round connectors with swivel connector

Supply voltage: 10 V DC ... 30 V DC

Power consumption: ≤ 13 W, Start-up phase max. 30 W for 1 s

Housing: AlSi12, optics cover: PC

Housing color: Gray (RAL 7042)

Protection class: III (IEC 61140:2016-11)

Electrical safety: IEC 61010-1:2010-06

Weight: 1.2 kg

Dimensions (L x W x H): 151.9 mm x 150 mm x 92.5 mm

Mounting method: Mounting height 2 m ... 5 m (typ. 2.5 m ... 3.5 m)

Response time: 4 layers, typ. 20 ms / 1 layer, typ. 80 ms

Ethernet: ✔, TCP/IP, UDP/IP

Digital inputs/outputs: I/O (8 (Multiport))
