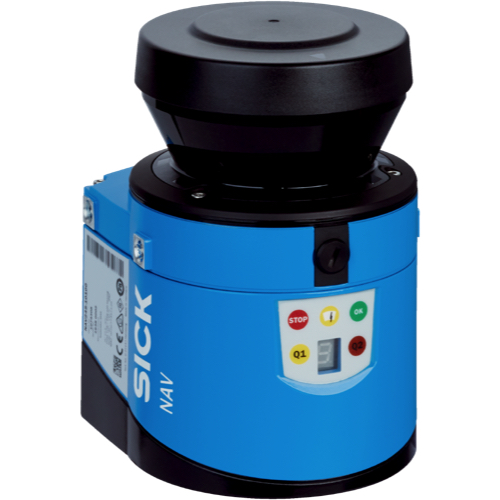

SICK NAV245-10100 2D 라이다 센서 (≥ 25 Hz, 0.001°, 0.5 m ~ 50 m)

Application: Indoor

Light source: Laser diode (905 nm)

Laser class: 1 (IEC 60825-1:2014, EN 60825-1:2014)

Aperture angle: Horizontal 270°

Scanning frequency: ≥ 25 Hz

Angular resolution: 0.001°, on reflectors 0.25°, on raw / contour data

Working range: 0.5 m ... 50 m (30 m on reflectors)

Scanning range: At 10% remission 18 m / At 90% remission 50 m

Connection type: 2 x M12 male connector/female connector

Supply voltage: 10.8 V DC ... 30 V DC

Power consumption: Typ. 8 W, heating typ. 35 W

Housing: Aluminum die cast

Housing color: Light blue (RAL 5012)

Enclosure rating: IP65 (EN 60529/A1 (2002-02))

Protection class: III (EN 61140 (2002-03))

Electrical safety: IEC 61010-1:2010-06

Weight: 1.1 kg

Dimensions (L x W x H): 124.9 mm x 102 mm x 152 mm
