SPECIFICATION :
Show similar products (270)

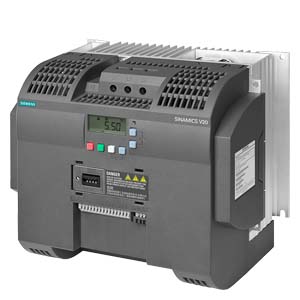

Manufacturer: SIEMENS
Type of module: Inverter
Max motor power:11kW
Inverter output voltage : 3 x 400V AC
Three-phase power supply voltages
range : 3 x 380...480V AC
Input 1 properties
rotational speed setting with signal
0...10V, 4...20mA, 0...20mA
Electrical connection
screw terminals
Mounting
for wall mounting
The programming method
keypad
Number of inputs: 6
Number of analog inputs: 2
Operating temperature : 0...60°C
Output frequency : 0...599Hz
Current rating: 25A
Number of analog outputs: 1
IP rating: IP20
Number of outputs :3
Manufacturer series
SINAMICS V20
Show similar products (270)
Gross weight: 3860 g
