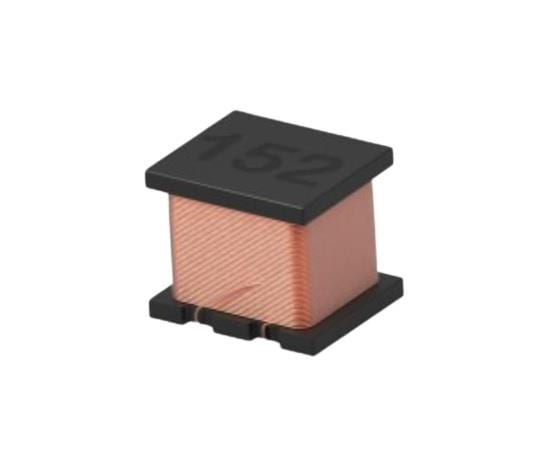

Sigma Inductors 3627575047C3R3M SMD 파워 인덕터 3627C 575047 3R3 20%

Width: 5 mm

Height: 4.7 mm

Length: 5.7 mm

Core Type: Wirewound

Shielding: Unshielded

Tolerance: 20 %

Inductance: 3.3 uH

Application: DC Power Supply Circuit

Termination: Standard

Core Material: Ferrite

Mounting Style: PCB Mount

Test Frequency: 1 MHz

Termination Style: SMD/SMT

Maximum DC Current: 2.9 A

Maximum DC Resistance: 50 mOhms

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 40 C
