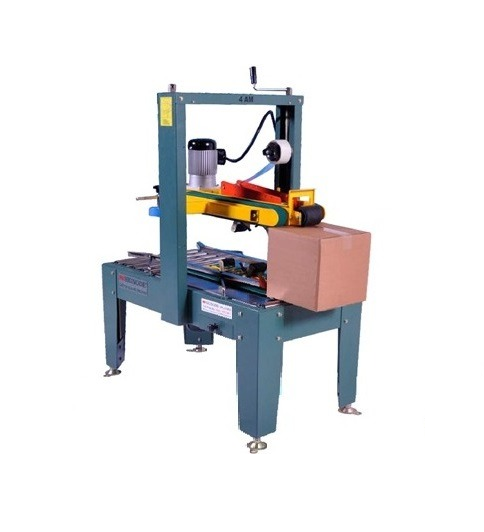

SIGNODE 4AM Semi Automatic Case Sealer

Machine specification

Taping Head: Standard (2"/2.5"/3")

Length: 1080 mm

Width: 570 mm

Height: 1460 mm

Weight: 143 Kg

Color: RAL 6000 & RAL 1021 Yellow (Moving Parts)

Drive motor: 0.25 HP, 2 No.

Belt speed: 20 Metres/ Min

Machine Throughput: Belt speed/ (Carton length+280 mm)

Utility requirements

Air requirement: NA

Air consumption: NA

Power consumption: 0.4KW

Tap roll length: 65 M /650 M/ 1000 M

Case dimensions

Length: 150 mm - Un Limited

Width: 160 mm -450 mm

Height: 100 mm -550 mm

Weight: 2- 50 Kg

Carton ply: Min 3 Ply
