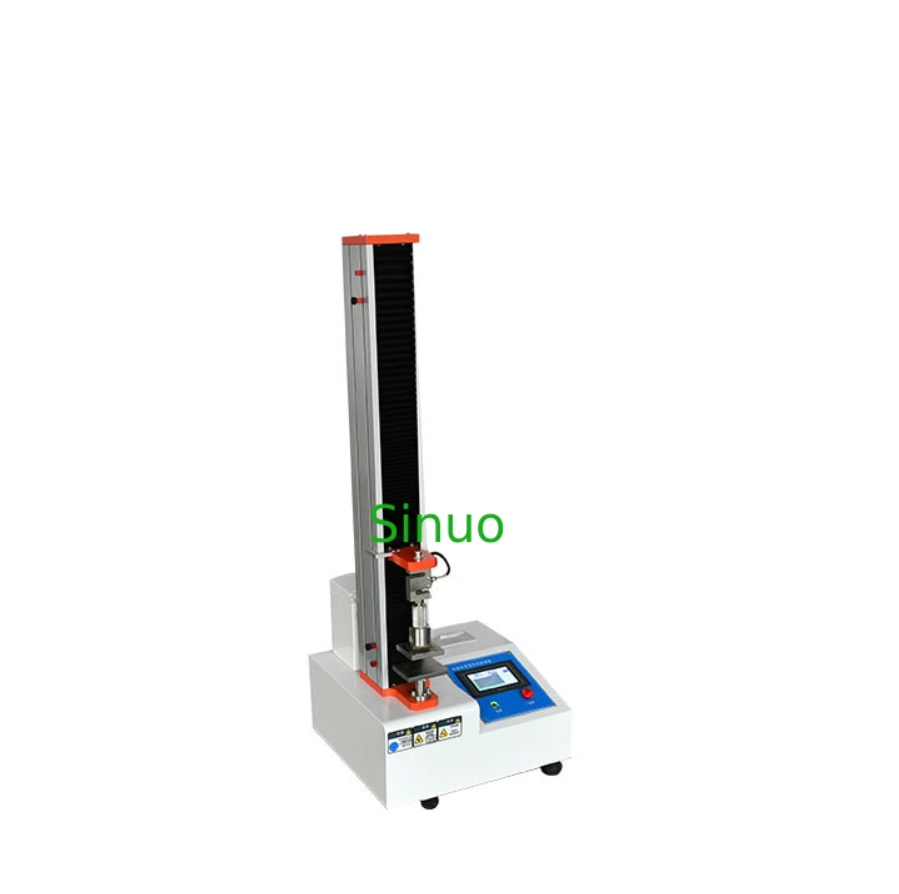

Sinuo SN1702 IEC 60335-1 Current Carrying Tube Extrusion Resistance Testing Machine For Vacuum Cleaners (AC 220V, 50Hz)

Input Power: AC220V±10%/50~60Hz

Test station: Single

Control method: PLC control

Force applied method: Electrical

Force applied range: 10~2000N, default 1500N

Force accuracy: ±0.5%

Test speed: 10~250mm/min can be set, default 50mm/min

Test stroke: 0~600mm

Test plate: LWH=100×50×20mm, long side rounding R1 one each up and down

Force hold time: 0~99.9s

Use environment: Working temperature 0~40 ℃ humidity 30%~90%
