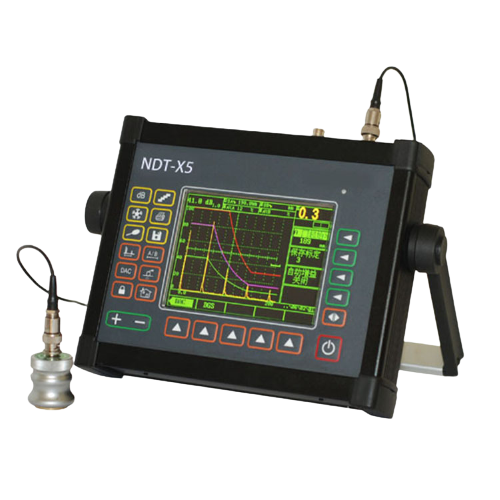

Jeweltest NDT- X5 초음파 결함 검출기 (1~15000mm)

Range: 1~15000mm

Resolution: 0.01mm(<100mm); 1mm(>100mm)

Velocity: 1000~15000m/s; 20 fixed sound velocity

Display delay: -20~3400us; resolution: 0.1us

Probe delay: 0~99us; resolution: 0.01us

Linear error: Horizontal linearity error ≤0.1%

Vertical linearity error: ≤3%

Dynamic range: ≥32dB

Sensitivity leavings: ≥50dB 200mmФ2 flat-bottomed hole

Size: 240×180×50mm

Weight: 2.2Kg (including battery pack)

Operating environment:

- Operating temperature: -20℃~60℃

- Operating humidity: 20%~90%
