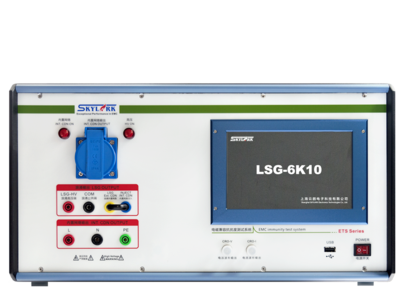

Skylark LSG-6K10 Lightning surge generator (0.5~ 6kV ±5%, 0.1kV.)

Open output voltage: 0.5 to 6kV ±5%, min 0.1kV.

Pre-wave time: 1.2μs ±30％

Pulse half peak time: 50μs ±20％

Short-circuit output current: Up to 3kA ±5%

Pre-wave time: 8μs ±20％

Pulse half peak time: 20μs ±20％

Output polarity: Positive and negative

Output impedance: 2Ω±10％

Surge trigger mode: Sync or asynchronous; Surges inject phase

Free set 0-360 degrees, resolution 1 degree

The way the surge is triggered: Automatic or manual, triggered at a single time

The number of surges: 1-9999 times

Surge interval time: 20-9999s

Built-in network capacity:

- AC: Single-phase 300V, 10A (Max), 50/60Hz

- DC: 300V, 10A (Max)

Built-in network coupling

- Line-Line (L-N)

- Line-ground (L-PE, N-PE)

Built-in network-coupled devices

- Line-line

- 18'F capacitor

- Line-ground

10-o resistance s.9 s. capacitor

Use the environment: Temperature: 10%-75% relative humidity at 15C-35C

System power: AC220 ± 10%, 50/60Hz, approx. 300W

Form factor: 470mm wide× 260mm high× 500mm deep

Weight of the whole machine: About 25kg
