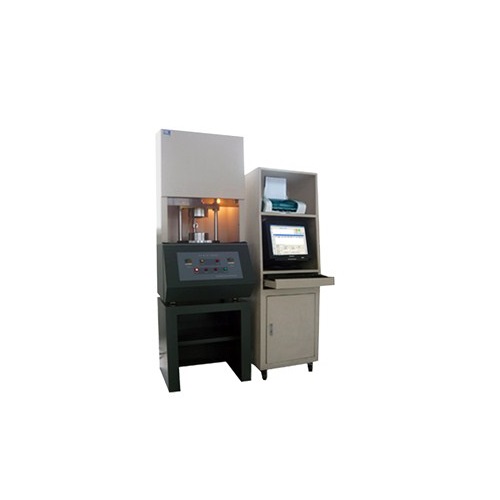

SKZ Industrial SKZ131 Rubber Vulcanizing Tester (0N.m ~ 10N.m)

Standard: ASTM D5289, ISO6502, T30,T60,T90.

Temperature range: room temperature ~ 300 ℃

Warming time: ≤ 15min

Temperature Resolution: 0 to 200 °C: 0.1 °C; 0 to 300 °C: 1 °C.

Temperature fluctuation: ≤ ± 0.5 °C (after feeding)

Torque range: 0N.m ~ 10N.m

Torque display resolution: 0.001N.m

Maximum test time: 120min (modify time during testing)

Swing angle: ± 0.5 ° (total amplitude of 1 °)

Body swing frequency: 1.7Hz ± 0.1Hz (102r/min ± 6r/min)

Power: AC220V ± 10% 50Hz

Dimension: 645mm × 580mm × 1300mm (L × W × H)

Weight: 210kg

- Control Software Features:

Operating Software: English version

Units of selection: kgf-cm, lbf-in, Nm, dN-m

Test data: ML (Nm) minimum torque; MH (Nm) maximum torque; TS1 (min)

initial curing time; TS2 (min) initial curing time; T10, T30, T50, T60, T90 curing time; Vc1, Vc2 vulcanization rate index

Test curve: vulcanization curve, temperature curve of the upper and lower mold

Time can be modified during testing

Test data can be automatically saved

Test data and curve can be displayed on a piece of paper, and available at any point on the mouse to select the curve values

Can add historical data for comparative analysis and print out.
