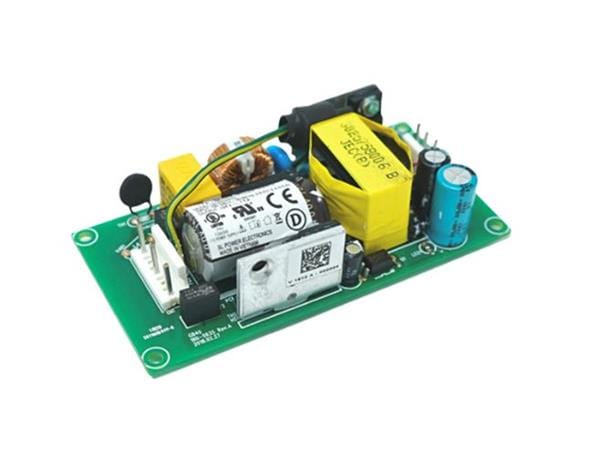

SL Power GB10S15P01 AC-DC 컨버터 10W 5V 0.8A Med PCB

Width: 27 mm

Height: 25 mm

Length: 52 mm

Industry: Medical, Industrial

Approvals: CSA/EN/IEC/UL60601-1, 66368-1

Compliance: CSA/EN/IEC/UL 60601-1, 66368-1

Efficiency: 88 %

Output Power: 12 W

Input Voltage: 100 VAC to 240 VAC

Mounting Style: PCB

Input Frequency: 47 Hz to 63 Hz

Load Regulation: Regulated

Isolation Voltage: 4 kVAC

Number of Outputs: 1 Output

Open Frame/Enclosed: Open Frame

Output Current-Channel 1: 800 mA

Output Voltage-Channel 1: 15 VDC

Maximum Operating Temperature: + 70 C

Minimum Operating Temperature: - 25 C
