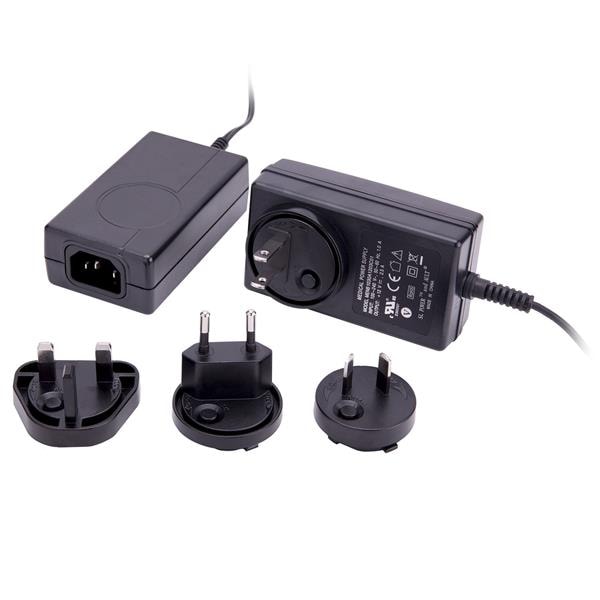

SL Power TE40A1802F01 데스크탑 AC 어댑터 클래스 I/데스크탑/C14 18Vdc/40W/레벨 VI

Width: 2.1 in

Height: 1.2 in

Length: 3.6 in

Region: North America

Industry: Industrial

Efficiency: Level VI

Unit Weight: 250 g

Output Power: 40 W

Input Voltage: 90 VAC to 264 VAC

Connector Type: Barrel Connector

Mounting Style: Desktop

Load Regulation: Regulated

Mechanical Style: External

Center Pin Length: 9.5 mm

Isolation Voltage: 4 kVAC

Number of Outputs: 1 Output

DC Output Connector: 2.1 mm Barrel Plug (2.1x5.5)

Input Voltage - Max: 240 VAC

Input Voltage - Min: 100 VAC

DC Output Cord Length: 1.45 m

Output Current-Channel 1: 2.2 A

Output Voltage-Channel 1: 18 VDC

AC Plug included/required: Required

Operating Temperature Range: - 20 C to + 70 C

Maximum Operating Temperature: + 70 C

Minimum Operating Temperature: - 20 C
