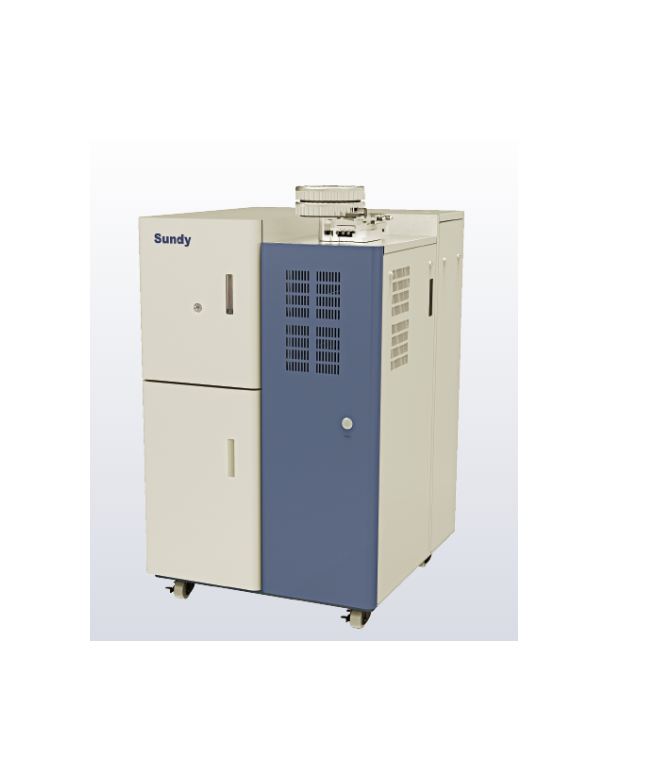

Sundy SDCHN636 Carbon Hydrogen & Nitrogen Analyzer (C（0.005%~100%), H（0.01%~50%),N（0.01%~50%）)

Measuring Range: C（0.005%~100%） H（0.01%~50%） N（0.01%~50%）

Reproducibility: Cd≤1.00% Hd≤0.25% Nd≤0.15%

Repeatability: Cad≤0.5% Had≤0.15% Nad ≤ 0.08%

Auto loader: 36/72 Samples

Analysis time: ≤5min/Sample

Sample Mass: 75~105mg（Recommended：100mg）

Analysis Method: CH：Infrared Absorption N：Thermal Conduction

Combustion Supporting Gas: Oxygen Purity：≥99.5% Pressure：≥1MPa

Carrier Gas: Helium Purity：≥99.99% Pressure：≥1MPa

Driving Gas: Nitrogen / Dry Compressed Air Pressure：≥1MPa

Preheating Time: ＜2.5hour

Sample Adding/Replacing Function: Available

Auto Analysis: Yes

Crucible Replacing: Automatic

Furnace Temperature: Combination Furnace，950℃±5℃ Reduction Furnace：700℃±5℃

Air Tightness Detection: Automatic

Humidity: 20%to 85%, non-condensing

Ambient Temperature: 15 ℃ to 28℃

Power requirement: AC 220 V（-15%~10%）50/60Hz

Max.Power: 4.5kW

Dimensions: 710*650*1045mm

Weight: 140kg

Advance Calculation: Yes

Analysis Report: Yes

Statistics Report: Yes

System Monitor: Yes
