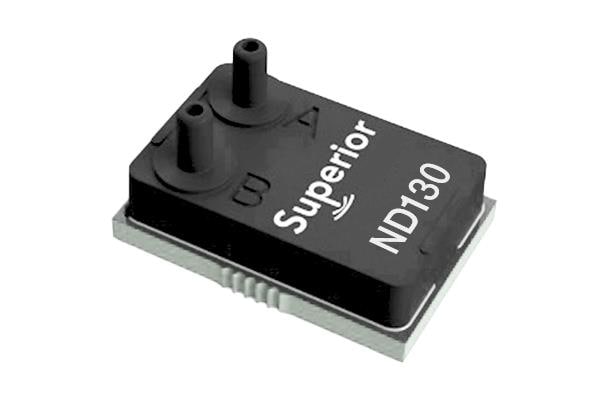

Superior Sensor Technology ND130-SM02-M 보드 마운트 압력 센서 차압 센서 산업용 애플리케이션

Accuracy: 0.05 %

Port Size: 2.13 mm

Port Type: Dual Barbless, Same Side

Resolution: 16 bit

Output Type: Digital

Pressure Type: Differential

Interface Type: I2C, SPI

Mounting Style: SMD/SMT

Moisture Sensitive: Yes

Operating Pressure: 500 Pa to 7.5 kPa

Supply Voltage - Max: 3.5 V

Supply Voltage - Min: 2.8 V

Operating Supply Current: 5 mA

Operating Supply Voltage: 3.3 V

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 20 C
