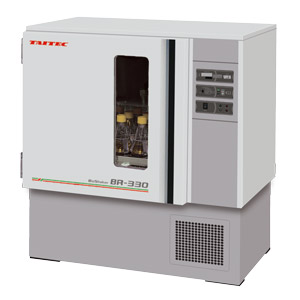

TAITEC BR-330 Constant Temperature Incubator Shaker (+4℃ ~ +70℃; ±0.3℃ ~ ±1.0℃)

Temperature range: +4℃ to +70℃

Temp. control accuracy (*1): ±0.3℃ to ±1.0℃

Shaking motion: Switchable Reciprocal/Orbital shaking

Speed range: 25 to 250 r/min

Shaking width: 10 to 50 mm (stepless)

Platform size/Capacity: 600 × 400 mm (Max. inside height: 575 mm),Erlenmeyer flask 500 mL × 15, 5 L × 3

Door type: Single swing door (Leftward open)

Ambient temp. range (*1): +5℃ to +30℃

Display (Temp. and speed): Digital display/setting

Maximum load: Approx. 10 kg/per platform (Platform not included)

Heating/Cooling method: Heater 700 W/Compressor 125 W

Program functions:

Number of stored programs: 4 programs

Number of steps: 9 steps (per program)

Setting contents: Temperature, shaking speed, and time (per step) with weight function (time setting range: 00 h 00 min to 99 h 59 min)

Other functions: Eco-Drive function, Automatic lighting of the chamber light, Communication holes in the chamber (2 holes)

Safety devices/functions: Leakage breaker 15 mA (15 A for overcurrent protection), High temperature safety device, High temperature cut circuit for compressor, Motor current limiter, Motor overload protection, Over-voltage protection, Fuse, Filter check function, Shaking stop function upon abnormal vibration detection, Self-diagnosis function for temperature sensor error, Nonvolatile memory error, Alarm of abnormal sample temp. (Set as desired),Detecting the door opening and closing, Breaking device when motor runaway

Dimensions (W × D × H)/Weight: 1110 (*2) × 662 × 1120 mm, Approx. 216 kg

Power supply: AC100V/AC220-240V/11A built-in down transformer

Standard accessories: Universal shaking platform MT-6040E ×2pc(*3), Vibration absorbing pad×4 pcs, Spacer× 4 pcs, Drain-reception plastic bottle×1 pc (With hose)

(*1)The temp. of the defrost function is not included. Also, the specifications may not be met outside the ambient temperature range.

(*2)Approx. 1260 mm when a delivery cart (not included) is installed.

(*3)Clamps are not included.

●Temp. range and Temp. stability may not be able to meet the specs when it is frozen by continuous operation. Required to defrost it regularly.

●Due to the large size and weight of this product, transportation and installation costs will be charged separately.
