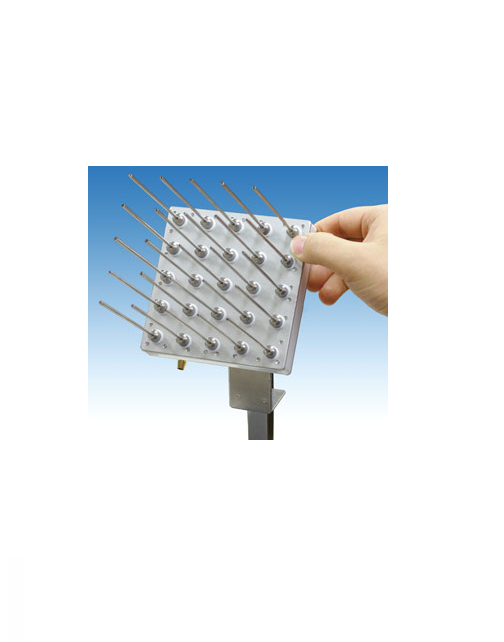

TAITEC EN1-20 Nitrogen Gas Spray Unit For Aluminum Block Bath (20 nozzles; φ18 mm)

Applicable type: DTU-1BN/2BN/1CN/2CN

Dimension of spray nozzle: Outer diameter 2mm x inner diameter 1.5mm x effective length 88mm

Number of nozzles: 20

Stopper number: 20

Applicable test tube: φ18 mm

Attachment nozzle dimension:

–Hose fitting: outer diameter ∅7mm (for inner diameter ∅6mm hose, factory default)

–One Touch fitting: inner diameter ∅6mm (for outer diameter ∅6mm hose, standard accessory)

Dimensions: 105 x 105 x 15Hmm

*Image is for illustrative purposes only.
