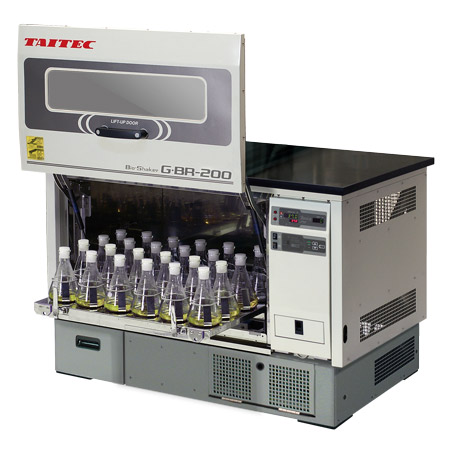

TAITEC GBR-200 Constant Temperature Incubator Shaker (+4℃ ~ +80℃; ±0.3℃ ~ ±1.0℃)

Shaking motion: Switchable Reciprocal/Orbital shaking

Temperature range: +4℃ to +80℃

Temp. control accuracy (*1): ±0.3℃ to ±1.0℃

Speed range (*2): 25 to 200 r/min

Shaking width: Switchable 25/50 mm (Default: 25 mm)

Platform size/Capacity: 700 × 500 mm (Max. inside height: 385 mm), Erlenmeyer flask 500 mL × 24, 5 L × 4

Door type: Swing lift-up door

Maximum load: approx. 10 kg (Platform not included)

Ambient temp. range (*1): +5℃ to +35℃

Heating/Cooling method: Heater 700 W/Compressor 125 W

Program functions: 1 pattern, 9 segments (4 combinations can be saved): Temp., Shaking speed and Time/per segment (Setting range: 00 h 00 min to 99 h 59 min),Wait function (*3)

Display (Temp. and speed): Digital display

Safety devices/functions: Leakage/Overcurrent breaker, Compressor overheating cut-off circuit, Alarm of abnormal sample temp. (Set as desired), Overload/Overvoltage protection, Fuse, Current limiter, Detecting the door opening and closing,Self-diagnosis function for temperature sensor error, Nonvolatile memory error, Breaking device when motor runaway, Self-check/lamp of filter

Dimensions (W × D × H)/Weight: 1200 (*4) × 800 × 810 mm (Including Top board: 1200 × 750 × 25 mm), Approx. 235 kg

Power supply: AC100V/AC220-240V/12A built-in down transformer

Standard accessories: Universal shaking platform MT-7050 ×1 pc (*5), 2 types Spacer × 2 pcs, Fixing bracket for stackable (*6)

(*1)The temp. of defrost function is not included. Also, the specifications may not be met outside of the ambient temperature range.

(*2)There is a limitation depending on the volume of vessels and the shaking width.

(*3)Shaking will start when reaching the preset temp.

(*4)Approximately 1800 mm when a delivery cart (not included) is installed.

(*5)Clamps are not included.

(*6)Included when stacking is desired.

●Temp. range and Temp. stability may not be able to meet the specs when it is frozen by continuous operation. Required to defrost it regularly.

●Due to the large size and weight of this product, transportation and installation costs will be charged separately.
