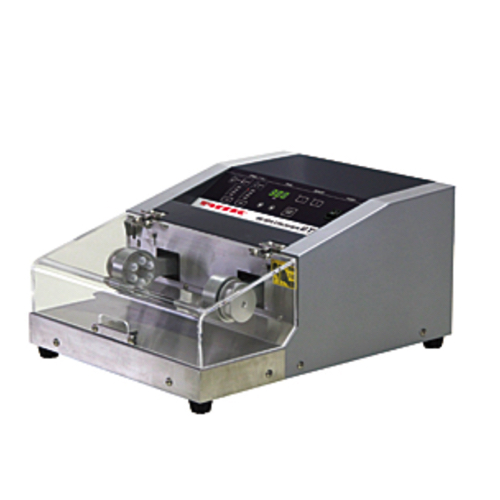

TAITEC μT-12 Bead Beater Homogenizer (1.5/2.0 mL; 1800 ~ 3200 r/min)

Crushing method: Crushing beads with pendular swing method

Shaking Speed: 1800 to 3200 r/min (8-step setting) (*1)

Capacity: 1.5/2.0 mL Screw cap microtube: Max. 12 pcs (*2) 5.0 mL Screw cap tube: Max. 2 pcs (*3)

Applicable beads: Non-metal beads, Stainless steel beads, Metal crusher, Zirconia Crusher (*4)

Ambient temperature: 5℃ to 35℃ (No condensation)

Timer/Memory: 1 to 300 seconds (Per 1 second setting. Up to 2 parameter settings can be memorized)

Safety devices/functions: Braking when the cover is open during operation,Motor overcurrent protection

Dimensions (W×D×H)/Weight: 310 × 400 × 200 mm, Approx. 15 kg

Power supply: AC100V-240V/4A (universal power supply)

(*1)Set below 2500 r/min and within 30 seconds when using Metal crusher and 5 mL Tubes.

(*2)Refer Recommended Microtubes on page 102. Maximum 12 pcs when using Metal crusher.

(*3)"QSP Transport Tube 5 mL" (580-GRD-Q) is recommended.

(*4)Stainless steel beads and Metal/Zirconia crusher are available as an option. Marketed Glass and Zirconia beads can be used.
