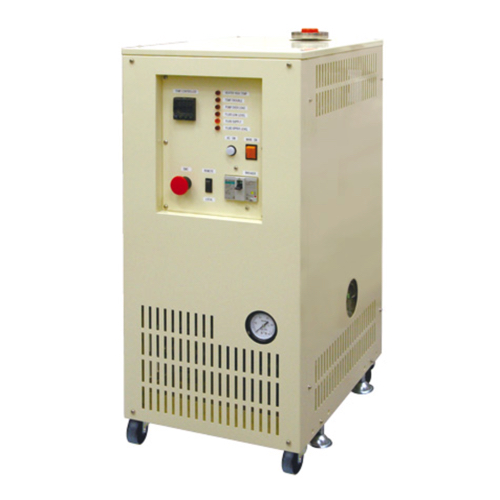

TAITEC TEX-25A Heat Exchanger (+70℃ ~ +200℃; ±0.5℃; 2.5kW)

Temperature range: +70℃ to +200℃

Control accuracy(*1): PID controller, ±0.5℃

Heater output: 2.5kW

Pumping capacity: Flow rate: 14L/min(0.2 MPa, when circulating fluid is +150℃)

Motor output: 1.1kW

Temp. rise and drop time(*2):

Temp. rise time (+70℃→+200℃):approx. 30 min (cooling water OFF)

Temp. drop time (+200℃→+70℃):approx. 25 min (cooling water ON), Cooling water condition：approx.8L/min at +20℃

Safety device/function: Short/Over current breaker, Circulating fluid high temperature, Temperature abnormal, Low fluid cut off, Liquid high-level, Pump overload

INPUT/OUTPUT functions: Remote temperature control connector, Heater ON/OFF input, Cooling water ON/OFF input, Temp. monitor signal output, Safety device actuation signal output

Heating medium (Circulating fluid): GALDEN® HT270 or HT200 (cannot be mixed in)

Fluid tank capacity: approx. 3L (＋Reserve tank：approx. 7L)

Connecting pipe diameter: Circulating fluid in/out：Rc1/2, Primary cooling water in/out: Rc1/2

Dimensions ／ Weight: 406×761×924 mm, approx. 115kg

Power Supply (three phase AC200V, 50/60Hz): 15A

Operation current: 12A

Standard accessories: Signal connector, power connector

Catalog

(*1)When the circulation flow rate is less than 5 L/min at no load.

(*2)The unit alone at no-load.

•Ambient temperature range for this product is +7℃ to +35℃.

•The fee for Delivery, Installing, Piping work, and Wiring work are quoted separately.
