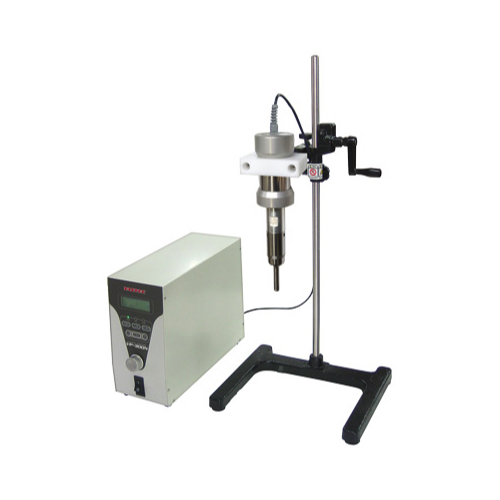

TAITEC VP-300N Ultrasonic Homogenizer (50 ~ 200 W; 19 ~ 21 kHz)

High frequency output: Maximum 300 W

Transducer normal output: 50 to 200 W (*)

Oscillation frequency range: 19 to 21 kHz

Tuning: Automatically

Operation mode:

– PWM operation: Automatic output adjustment according to viscosity change of sample

– POW operation: Stable oscillation when change in viscosity or temp are small

– SEN operation: Controls the output so the value of oscillation sensor inside is constant

Other functions:

– Timer operation (1 sec to 120 min)

– Programmed interval operation (ON: 3 to 60 sec, OFF: 1 to 60 sec)

Configuration: Main unit, Converter, φ12 mm Standard horn (Preinstalled Tip)

Oscillation switch: Equipped in Main unit (Optional foot switch can be used)

Dimensions (W×D×H)/Weight: 143 × 360 × 283 mm, Approx. 6.7 kg

Standard accessories: Standard horn (φ12 mm: VP-HN12), Tip (φ12 mm: VP-ET12)

Power supply: AC100V/5A (Need a step-down transformer)

(*)The upper limit varies depending on the horn and the tip used.
